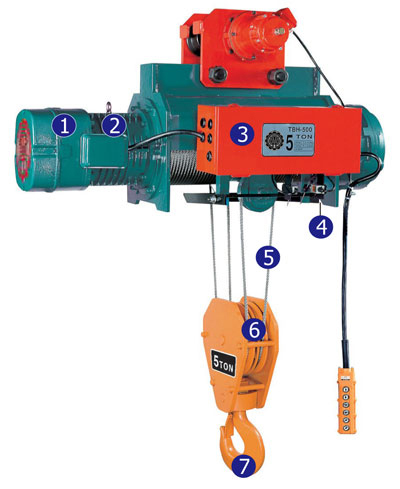

The latest three-phase electromagnetic brake system, synchronized with the motor, the action is real, the brake braking force is extremely strong.
High-performance starting torque squirrel-cage motor with high electric horsepower for long-term high-frequency applications. Quiet operation, small size and light weight.
40% ED (double speed 40/20% ED)
The general rating is IP-20, which also provides a higher level of demand.
Alloy steel is used and surface hardened.
A steel wire of Japan JIS G 3525 is used.
The large-sized pulley design protects the wire rope and extends its service life. The pulley diameter is changed to the diameter according to the FEM grade.
The hook head is forged from S45C/SCM440 forged steel and is safely secured by a flat thrust bearing combination.
